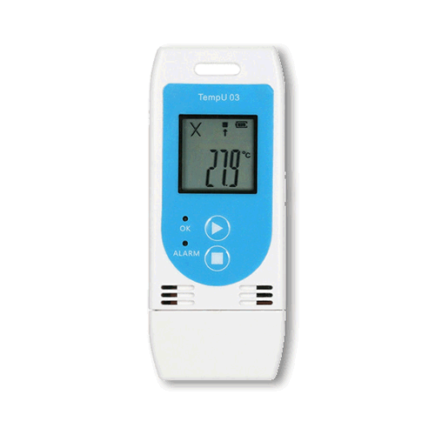

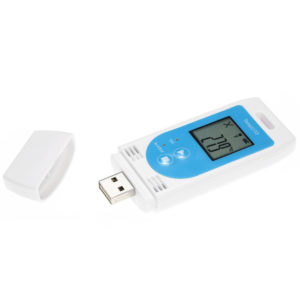

TempU 03

The TempU 03 Temperature and Humidity Multiuse USB Data Logger is the perfect tool for cold-chain monitoring and documentation of temperature and relative humidity conditions with auto generated PDF and CSV data download

The TempU 03 Temperature and Humidity Multiuse USB Data Logger is the perfect tool for cold-chain monitoring and documentation of temperature and relative humidity conditions that are critical in laboratories, pharmaceutical, medical, storage, freezers, coolers, shipping containers, warehouses, environmental monitoring and food storage applications.

Features

  • Multi-use temperature & humidity measurement and recording
  • Statistics available on LCD screen
  • No software needed to export data
  • Auto-generate PDF and CSV file
  • Reprogrammable software
  • Designed for logistics temperature monitoring
  • Designed for food temperature monitoring
  • Uses wireless temperature monitoring technology
TempU03 - 2

Applications

  • Floral
  • Specimens
  • Chocolate
  • Tissue samples
  • Pharmaceutical
  • Meal delivery
  • Raw and cooked meats
  • Chemicals
  • Food

How to Use

RELATED PRODUCTS

Specs

Temperature Scale
ºC or ºF
Temperature Range Temperature
-30°C ~ +60°C / Humidity: 0%RH ~ 100%RH
Temperature Accuracy
±3°C RH / ±0.5°C (-20ºC ~ +40ºC), ±1.0°C (other range)
Temperature Resolution
0.1°C
Data Storage Capacity
32,000 Readings
Shelf Life / Battery
~ 1 year / CR2032 button cell (depending on sampling rate and environment)
Recording Interval
Programmable (10sec ~ 18hrs) – Default: 10mins
Recording Options
Push-to-Start or Start Delay
Start Delay
Programmable (0 ~ 254mins) – Default: 30mins
Alarm Delay
Programmable (0 ~ 960mins) – Default: 10mins
Alarm Range
Programmable High / Low Alarm Limit per Channel – Default: <2º or >8ºC, <40% or >80 %RH
Report Generation
Auto-generate PDF report and CSV file
Communication Interface
USB 2.0
Time Zone
UTC +0.00 – Default
Dimensions / Weight
89mm x 36mm x 16mm / 25g





Documents

 Adobe_PDF_file_icon_32x32
TempU 03 Sales Sheet
 Adobe_PDF_file_icon_32x32
TempU 03 Operating Instructions
