The ShockWatch Ultrasonic Proximity Alert System (USENS) by KIGIS is a detection system that helps minimise accidents in a fast-paced workplace environments between pedestrians and industrial vehicles. The ultrasonic sensors installed in the front/rear of the vehicle detect objects or pedestrians located within the warning area. Once detected, the Controller triggers an audio and LED alert for the driver.
An optional Rear Camera View System (IVIEW) can be integrated to provide an additional visual aid.
SYSTEM COMPONENTS

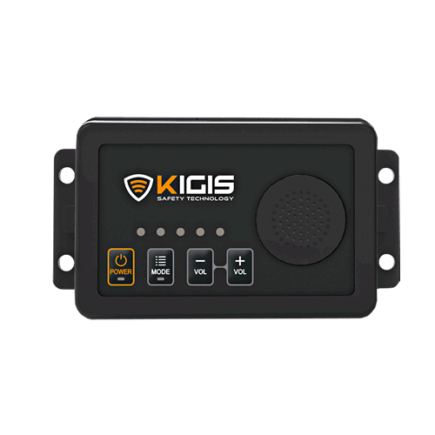

Controller
The Controller has a sound and LED light alarm for the driver when a nearby obstacle is detected by the ultrasonic
sensor.
- Ultrasonic Proximity Detecting System
- LIN interface with 12 or 24V external power
- Easy to use
- Simple installation and detachment using bolts
- Alert functions are unaffected by wind, falling rain or
snow, fog, humidity, air temperature, or light - Controller operates in warehouse, factory, port and
construction/mining site as a safety device - IP65 enclosure withstands harsh environments

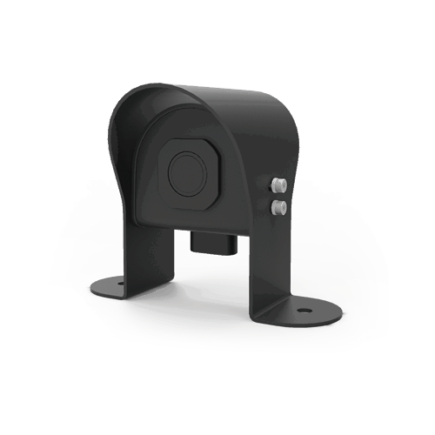

Sensor
Ultrasonic Sensor used to detect obstacles located near the vehicle.
- Ultra Wideband based intelligent proximity alert system
- Accuracy of distance measurement
9.9~10.8% - Detection Distance: Minimum 0.3, Maximum 3.0m
- Detection Angle: Horizontal 60°, Vertical 30°
- 10.5V external power
- Easy to use
- Simple installation and detachment using screws
- Detecting functions are unaffected by wind, falling rain or
snow, fog, humidity, air temperature, or light - Sensor operates in warehouse, factory, port and
construction/mining site as a safety device - IP67 enclosure withstands harsh environments
Optional Accessories
IVIEW Monitor
The IVIEW Monitor will show the operator of any obstructions at the rear of the vehicle from the IVIEW Camera.
IVIEW Camera
The IVIEW Camera will show obstacles at the rear of the vehicle on the IVIEW Monitor.
Speaker
Optional Speaker provides voice alerts.
How it Works
Ultrasonic Wave Sensor Range
Detection Angle: 60º Horizontal, 30º Vertical
Detecting Range: 0.3m ~ 3m
Dead Zone: 0.3m
Note: The result can vary according to specifications of obstacles and measurement condition.
